Conveyor Rubber Belt
Wear-proof quality synthetic SBR, EPDM, Neoprene, Nitrile resistant to Fire, Super Heat, Abrasion, Oil, Food Grade & Textile EP, NN Ply combination to transport bulk materials and goods.
Test Passed as per IS3181, IS1891, ISO21183.
PVC Belts
Non-Toxic quality polyamide plies PU Food grade smooth, patterned, cleated for light material conveying.
Test Passed as per BS2890.
Idler Rollers with Steel Frame
MS ERW Pipe Dustproof quality types Carrying top side, Return with brackets underside of a conveyor system, Impact with shock-absorbing rubber rings loading and transfer points placing, Self Aligning belt tracking to support the conveyor-belt & stable movement.
Test Passed as per IS8598, IS8531, CEMA-C.
Produced & Exported under the brand name “HIC Universal”, an ISO 9001 certified Manufacturing company.
CREDENTIALS as to quality industries supplies & true performance, Click Menu Tab.
TC, COC of CONVEYOR BELT, IDLER TESTING
Test Certificate and Material COC of Manufacturer, HIC make conveyor rubber belt, idler roller, PVC belts products in-house Lab Testing, TC forwarded along-with the supplies.
Also, on EXTRA cost, from an independently accredited India Test Facility, like DNV, RITES, SGS, PDIL, National Test House or any Govt. approved laboratory or other Third-Party Inspection agencies.
CUSTOMERS of HIC CONVEYOR PARTS
HIC’s conveyor parts are trusted by OEMs in ASIA of:
- Bulk Systems Manufacturers,
- Mining & Exploration Consultants,
- Crusher Plant Contractors,
- Urea Fertilizer Processing & Handling Equipment Makers,
- Iron Ore Conveyor System Suppliers,
- Hardware Tools Importers in Malaysia, Indonesia, Saudi Arabia, Israel, Vietnam, Oman, Iraq, Jordan, Philippines, Sri Lanka, Japan, China, Russia, South America, Africa, Canada, USA, NZ, France, and Australia,
- Direct Manufacturing Industries like cement plants, sugar mills, paper mill, port trust, food processing factory customers.
Featured ranges
Section 01 of 4
PRODUCTION CAPABILITIES Of HEAVY-DUTY RUBBER BELT TYPES
Manufacturing range of HIC UNIVERSAL Rubber Conveyor Belt Types as per IS1891, DIN22102, IS3181, CAN/CSA M422, SANS1173, ISO21183 standards production capabilities consist of:
2 products
Browse the range: PRODUCTION CAPABILITIES Of HEAVY-DUTY RUBBER BELT TYPESSection 02 of 4
MANUFACTURING CAPABILITIES Of IDLER ROLLER TYPES
Troughing Idlers are produced of CRCA Steel Roller ERW MS pipe with bright bar shaft, single piece frame fitted with seize-resistant bearings dust-proof sealing system to carry or convey conveyor belt loaded with bulk material types such as Carrying, Return, Impact roller idler manufacturing up to 2400mm conveyor belt widths as per IS8598, IS8531, CEMA-C, BS standards.
3 products
Browse the range: MANUFACTURING CAPABILITIES Of IDLER ROLLER TYPESSection 03 of 4
Continuous Materials Handling & Belt Conveyor Troughing Steel Parts Specialization
Rubber Belts making specialty being Reverse Stepped Ply construction for boiler house submerged ash handling, Breaker Ply construction for extreme impact resistance continuous conveying and Hot Vulcanizing Endless Belting as per IS1891, DIN22102.
1 product
Browse the range: Continuous Materials Handling & Belt Conveyor Troughing Steel Parts SpecializationSection 04 of 4
MECHANICAL FASTENERS FOR BELT ENDS JOINTING SOLUTION
Mechanical Fastener types manufacturing such as metal clamps solid plates type Hawk, P14, metal lacing Staples type Food Quality, Bucket Bolts type used to join conveyor belt & elevator belting ends to make a loop, heavy-duty fasteners jointing solution.
4 products
Browse the range: MECHANICAL FASTENERS FOR BELT ENDS JOINTING SOLUTIONWhy HIC Universal Conveyor Rubber Belts?
- Super Wear Resistant Textile RMA General Purpose M, N, Z Conveyor Belts
- Superb Bonding Multi-Ply EP, Nylon Fabric SBR Heat Resistant Rubber
- Excellent Fire Resistant Anti-Static Neoprene Rubber FRAS
- Ultra Heat Resistant High Tensile Strength EPDM UHR
- Food Grade Non-Toxic Open and Endless NBR HYGIENIC
Section 01
PRODUCTION CAPABILITIES Of HEAVY-DUTY RUBBER BELT TYPES
Manufacturing range of HIC UNIVERSAL Rubber Conveyor Belt Types as per IS1891, DIN22102, IS3181, CAN/CSA M422, SANS1173, ISO21183 standards production capabilities consist of:

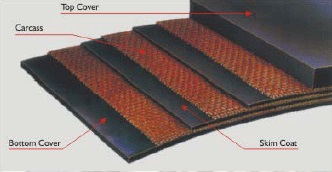

Textile carcass EP polyester fabric, Nylon NN, Cotton CC Plies/ Layers up to 2000mm Widths Heavy Duty material handling applications.
RESISTANT To FIRE, ULTRA HEAT, ANTI-ABRASION BELTS MANUFACTURED
Specification8 lines
- Manufactured for Stone Crusher, Sugarcane Bagasse, Limestone Rocks, Urea Fertilizer, Iron ore, Heavy-Duty Belt Conveyor System Anti-Abrasion Rubber General Purpose RMA, Synthetic SBR Grades M, N, A.
- Lignite & Underground Coal Convey Fire Resistant Anti-Static Neoprene rubber.
- Hot Alloy, Hot-mix Asphalt, Foundry Sand Transport Super Heat Resistant T2 SBR rubber-quality.
- Cement Clinker Handling Ultra HR grade T3 EPDM rubber-grade belts.
- Sugar, CTC Tea, Bakery Food Grade Hygienic Nitrile Rubber Off-White color.
- Mineral Oils, Vegetable Oil Dust Conveying Oil Resistant Grades ORHR, MOR

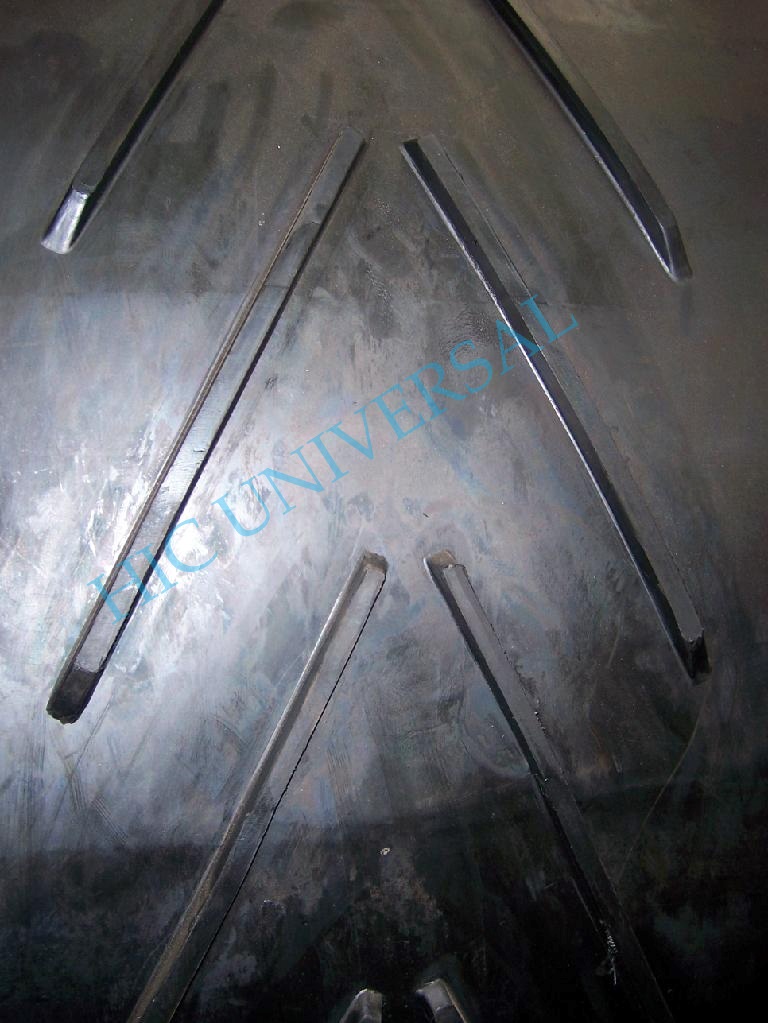

- Bag Diverter Inclined Conveying Rough Top and Chevron C15 Pattern on Top
- Vertical Conveying Bucket Elevator Belt
SIZES, TS RATING, COVER THICKNESS, LENGTH Of BELTS PRODUCED
Specification9 lines
- Width Produced Sizes: 400 to 2000mm;
- Ply, Layers: 2 to 8
- Tensile Strength (TS) Rating: 315~2800KN/m.
- Cover Thickness, Rubber Coating: 3mm Min.~12mm (Top, Smooth),
- 3mm Min.~6mm (Top, ROUGH, CHEVRON PATTERN), 1.5mm Min. ~6mm (Bottom)
- Edges: Cut, standard. Also Molded/ Bonded
- Breaker Impact Resistant Fabric: on Top, Bottom, Edges
- Grade of Rubber Belt: Abrasion Resistant M/N/A, SHR, FR, FRAS, Food, ORHR
- Roll Length: 100m Min., Single coil max. 300m in Open Ends
Why HIC Universal Conveyor Idler Rollers?
- Dust Proof Multi-Labyrinth Seals Carrying, Return, Impact Rollers
- Corrosion Resistant CRCA Steel Housing Self-Aligning Idler
- Accurate Rotating MIG Welded Machined Shell Ends
- CNC Machined Slotted Bright Bar Shaft Idlers
- Minimizes Seize-Resistant Bearing Misalignment
Section 02
MANUFACTURING CAPABILITIES Of IDLER ROLLER TYPES

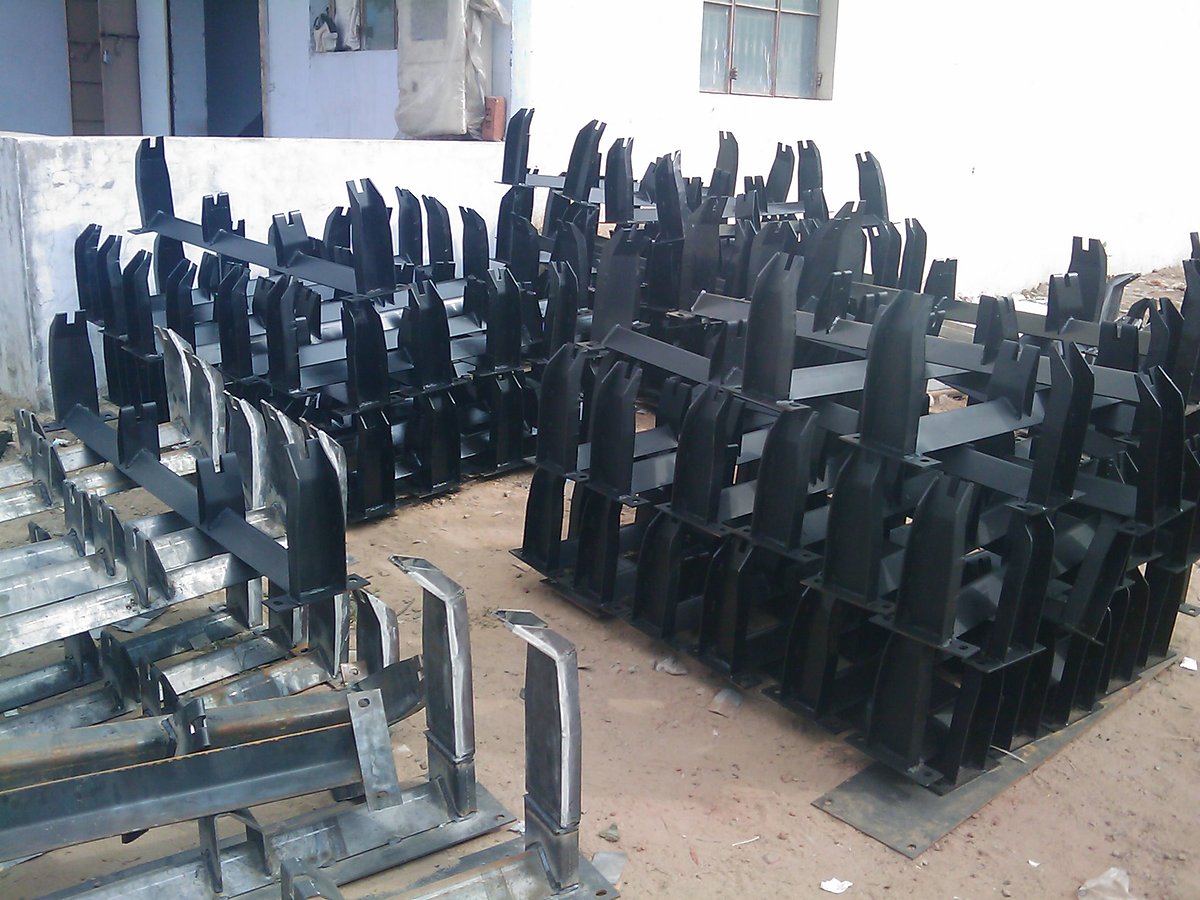

Troughing Idlers are produced of CRCA Steel Roller ERW MS pipe with bright bar shaft, single piece frame fitted with seize-resistant bearings dust-proof sealing system to carry or convey conveyor belt loaded with bulk material types such as Carrying, Return, Impact roller idler manufacturing up to 2400mm conveyor belt widths as per IS8598, IS8531, CEMA-C, BS standards.
CARRYING, RETURN, IMPACT RUBBER RINGS IDLERS MANUFACTURED
Specification6 lines

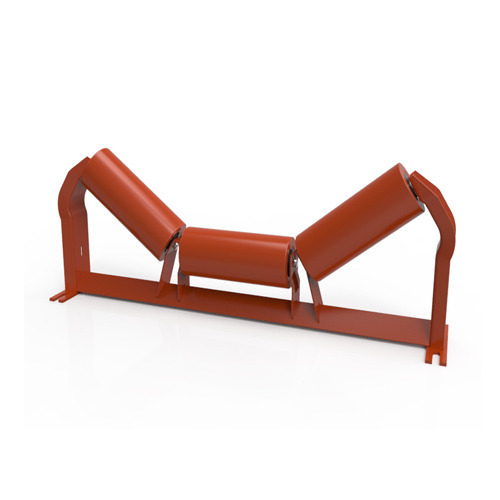

- Carrying, Single Roll flat, Roller with Frame, Tapered, 3 roll off set troughing idlers made of ERW Steel MS pipe for material handling equipment conveyors.

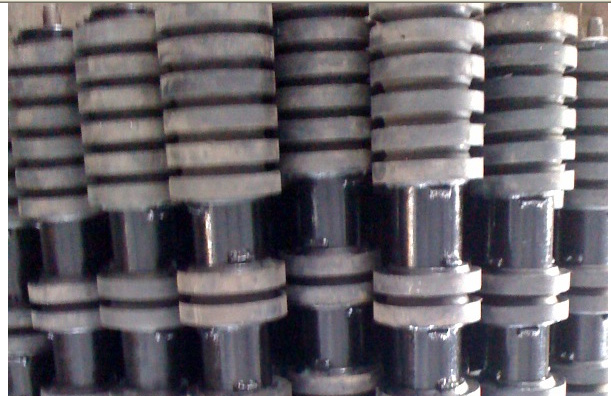

- Impact, fitted with concentric Rubber Rings Idler used at loading point.

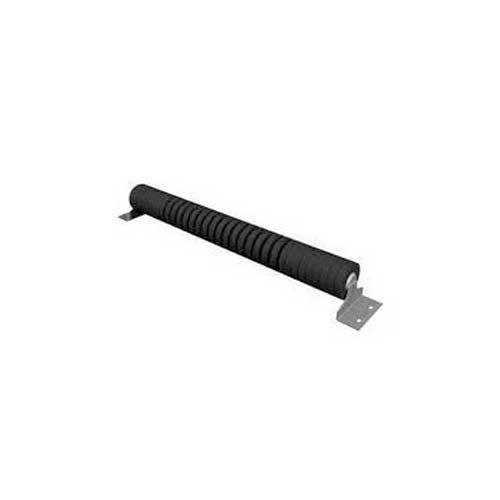

- Return, Single roll Flat, Rubber disc return, Vee return for keeping belt centered.
- Self-Aligning, Re-aligns the belt in event of Misalignment automatically.
- Garland, for use in Tunnel, Rock Excavation at very high-speed conveying belt speeds up to 60 m/min and high capacities installed onto a roller frame.
- Guide, Overcomes belt-edges damage from a flat to a trough shape transition.
ROLLER SIZES, DIAMETER, LENGTH OF CONVEYOR IDLER PRODUCED
Specification10 lines
- Steel Roller Sizes Produced: 76,89mm Diameter for up to Belt-Width 500mm
- 89,114mm Tube Diam. for up to BW750mm
- 114,139mm Diam. for up to BW1000mm
- 139, 152mm Diam. for up to BW1200mm
- 152,165, 195mm Diam. for up to BW1400mm and above
- Shell Length of Conveyor Idler: 200mm for BW500mm; 235mm for BW600mm
- 250mm for BW650mm; 315mm for BW800mm
- 380mm for BW1000mm; 465mm for BW1200mm
- 530mm for BW1400mm; 600mm for BW1600mm
- 670mm for BW1800mm; 750mm for Belt Width 2000mm
PIPE THICKNESS, SHAFT, BEARING SIZE, SEAL-MATERIAL Of IDLER
MS ERW Pipe Thickness (Tube Plate, based on Idler load handling):
Specification12 lines
- 3.65mm, 4mm, 4.5mm, 4.85mm, 5.4mm, 6.3mm
- Standard Thickness by Roller Diameter:
- Small Diameters (60 mm – 89 mm): 3.0 mm to 4.0 mm wall thickness.
- Medium Diameters (114 mm – 139 mm): 3.65 mm to 4.5 mm wall thickness.
- Large Diameters (139 mm – 195 mm): 4.0 mm to 6.3 mm wall thickness.
- Shaft Diameter of Carbon Steel, Alloy Steel Material: 20 to 40mm
- Rubber Rings for Impact Idler: 32 or 50mm thick diameter OD
- Bearing seize resistant size: 6204zz, 6205, 6206 or 6306, 6207, 6208 or 6308
- Seal: Multi-labyrinth type nyloplast with molded dust cover or adopter
- Notching dim. on idler spindle: 9x14mm for 20mm; 12x18mm for 25mm
- Surface Finish: Rust Protected primer base coat sealer and top coating with oil paint in Blue, Gray, Black color. Special Yellow, Orange or other shades also done.
- Also, conveyor idlers custom made as per Drawings.
Section 03
Continuous Materials Handling & Belt Conveyor Troughing Steel Parts Specialization
Rubber Belts making specialty being Reverse Stepped Ply construction for boiler house submerged ash handling, Breaker Ply construction for extreme impact resistance continuous conveying and Hot Vulcanizing Endless Belting as per IS1891, DIN22102.
PVC Conveyor Belts making specialty Non-Toxic Food Grade Stains-Free Hygienic, Oil and Fats Resistant Non-Stick Surface Types Smooth, Cleated Flights for light materials handling as per BS2890, ISO583, EU10-2011, CE1935, ISO21183 standards.
Roller’s fabrication specialty includes Rubber Disc/ Rings, Multi-labyrinth Sealing system Steel Idlers and Rubber Lagging with Hot Vulcanizing for very high impact resistance belt troughing as per IS8598, IS8531, CEMA-C, BS standards.
PVC CONVEYOR BELT TYPES, THICKNESS, SIZES, COLOR PRODUCED
Specification6 lines
- PVC-food quality White color belts smooth surface finish thickness sizes for Food Processing Canning, Sugar, Seafood, Meat Tea, Vegetables, Fruits, Poultry transport or conveying use produced in 1.6, 2.7, 3, 5, 6 mm
- PVC Green or Black color conveyor nitrile belting thickness sizes produced 1, 2, 3, 3.5, 4, 5mm
- Pebble Top conveyor-belt, Rough Grip, Ribbed type, Bare Bottom, Saw Tooth, PU FDA grade quality types also being produced.
- Regular standard PVC belting Thickness sizes: 2mm,3mm,5mm, 6mm
- Polyester Mono-filament fabric Ply layers 1, 2, 3 as per total thickness
- Width Size: 100 mm to 2800 mm~112inch
Section 04
MECHANICAL FASTENERS FOR BELT ENDS JOINTING SOLUTION
Mechanical Fastener types manufacturing such as metal clamps solid plates type Hawk, P14, metal lacing Staples type Food Quality, Bucket Bolts type used to join conveyor belt & elevator belting ends to make a loop, heavy-duty fasteners jointing solution.
PLATE TYPE, P14 WIRE HOOK BELT FASTENERS MANUFACTURED
Solid Plate Hawk type of High Tensile Strength Chamfered Steel as per IS10288 for heavy duty conveyor rubber belt of 5mm to 24mm thick joining fasteners:
- Sizes manufactured: number 1”, 140mm, 190mm,
- 1-1/4”, 1-1/2”, 2”,
- 2-1/4”, 2-1/2”, 3 inches.
- P-14 Size X P-14 Carbon Steel WIRE Hook Lacing as per IS12091 for 8.5MM TO 14.5MM Belt Thickness of 36 Pcs. Combs of 65mm Length in 1 Box.
STAPLE FASTENER SINGLE-PIECE STRIP STAINLESS STEEL MATERIAL
Pre-inserted Staples Food Safe SS304 Stainless Steel Material Lacing Hook Strip Croco type, single-piece strip as per ISO14890 for PVC belt of 1. 5mm to 6mm thick joining staple fastener:
Sizes: RS62, RS125, RS187.
ELEVATOR BOLTS TYPE EURO, FANG, NORWAY, REF.70 PRODUCED
Euro Elevator Bolts produced as per DIN15237 gr.4.6 for joining bucket elevator rubber belts:
Specification13 lines
- Sizes: M6 x20/25/30, M7 x20/25/30/35,
- M8 x20/25/30/35/40/45/50, M10 x25/30/35/40/45/50,
- M12 x40/50/60/70.
- Fang Bolt as per ISO gr.5.8 for joining grain elevator belt fasteners.
- Sizes: M6 x 25 mm head, M8 x 30mm head, M10 x 35mm head.
- Norway gr2 Elevator Bolt Food Grade Quality zinc plated steel material fasteners:
- Sizes: ¼inch x 1”/1-1/4”/1-1/2”/2”,
- 5/16inch x 1”/1-1/4”/1-1/2”/1-3/4”/2”,
- 3/8inch x 1”/1-1/4”/1-1/2”/1-3/4”/2”.
- Reference 70 Elevator Bucket Bolts Fasteners with oval or domed or large flat washer in metric thread for Whitworth thread:
- Sizes: M6, M8, M10, M12,
- 1/4inch x 3/4"/1”, 5/16inch x1”/1-1/4”/1-1/2”,
- 3/8inch x 1-1/4”/1-1/2”.
HEAD CONVEYOR DRUM, TAIL PULLEY MACHINING SPECIALTY
Conveyor Drum machining specialty includes Quality Carbon Steel Shell and Shaft Notching; Head End Drum & Tail Pulley rubber lagged in diamond groove fabricated as per IS8531, ISO3684, SANS1669-1 quality standards for continuous material handling:
Specification6 lines
- Sizes of steel tube diameter, MM: 219, 273, 323, 355, 408,455, 510, 630, 800,1000
- Shell Thickness, MM: 8, 10, 12, 14, 18, 22.
- Shaft material: EN3A, EN9
- Bearings type: Seize Resistant
- Lubrication: Grease type GPG-2LX EP.
- Rubber Lagging: Diamond Grooved on Head conveyor pulley.
AUTOMATE Materials Haulage Over Long Distances and Belt Carrying Support
High Abrasion and Temperature Resistant aspect advantage of HIC Conveyer Belts are proven for coal & Sulphur mining FRAS quality, limestone & iron ore M grade General Purpose, hot ash & coke conveying SHR grade, urea & sand transport Abrasion Resistant gr, tea & sugar transfer Food grade Band, etc. materials haulage over long distances Automation applications for long life reliable material handling performance.
Quality Housing and Sealing System advantages of HIC Idlers are proven for mining minerals, industrial materials, port trust goods, airport baggage conveyors, etc. belt conveyor carrying support, conveyor troughing applications for long-life satisfactory performance.
